BEST IN CLASS OF AI BASED SMART FACE RECOGNITION TERMINAL

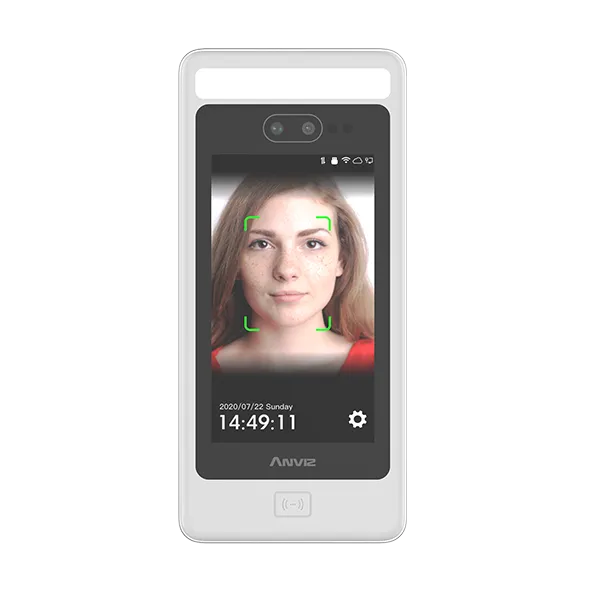

FaceDeep 5 is the new AI-based face recognition terminal equipped with a dual-core based Linux based CPU and the latest BioNANO® deep learning algorithm. It supports up to 50,000 dynamic face database and rapidly recognize users within 2M(6.5 ft) in less than 0.3 seconds and customizes alerts and a variety of reporting for no-mask wearing.
Dual Camera for Live Face Detection
Anviz’s Dual Camera technology enable IR and visual face recognition with unique deep learning algorithm to achieve the high accuracy and identify fake faces by photos or images.
Powered by Independent AI Engine and BioNANO® Deep Learning Algorithm
Masks or Not
AI Deep Learning to Detect Users Wearing
Features
Widely adaptable to Various Conditions
With the verification of over one million faces around the world, FaceDeep has become one of the most accurate face recognition terminals suitable for various environments and conditions.
- Makeup
- Hairstyle and Beard
- Expression Changes
- Glasses
- Hats
| Model | FaceDeep 5 | FaceDeep 5 IRT |
| Capacity | ||
|---|---|---|
| Max.User | 50,000 | |
| Max.Card | 50,000 | |
| Max.Log | 100,000 | |
| Interface | ||
| Communication | TCP/IP, RS232, Wi-Fi | |
| I/O | Relay Output, Wiegand Output, Door Sensor, Switch | |
| Feature | ||
| Identification | Face, Password, RFID Card | |
| Identification Speed | <300ms | |
| Protection | IP65 | |
| Embedded Webserver | Support | |
| Multi-languages Support | Support | |
| Software | CrossChex | |
| Hardware | ||
| CPU | Dual Core Linux Based 1Ghz CPU with Enhanced AI Computing Power | |
| Cameras | Infrared Light Camera*1, Visible Light Camera*1 | |
| Dimensions{W x H x D) | 88*190*16 mm (3.465*7.48*0.629 inch) | 88*236*16 mm (3.465*9.29*0.629 inch) |
| Infrared Thermal Temperature Module | — | Temperature Range: -10~50 °C (14~122 °F) |
| LCD | 5" IPS LED Touch Screen | |
| Camera Angle Range for Verification | 74.38°(Visual),67.57°(Infrared) | |
| Identification Distance | < 2m (78.7 inch) | |
| RFID Card | Supported with duel frequency RFID cards, 125KHz EM & 13.56MHz Mifare,DESFire | |
| Humidity | 20% to 90% | |
| Operating Temperature | -30 °C (-22 °F)- 60 °C (140 °F) | |
| Operating Voltage | DC12V 3A | |
