Elevate Your Diagnostic Capabilities with the SR-130
Introducing the Source Ray SR-130 Portable X-Ray System, the epitome of power, precision, and portability in the world of medical imaging. Engineered to deliver hospital-quality imaging anytime, anywhere, the SR-130 combines cutting-edge technology with unmatched reliability, all within a compact, lightweight design.
Key Features
Superior Power and Performance
- High Power Output: The SR-130 operates at 100kV/30mA, providing a powerful 3kW system that ensures superior image quality.
- Enhanced Imaging: Reduce exposure times on challenging radiographic views, minimizing patient motion and enhancing image clarity.
Advanced Technology
- State-of-the-Art Technology: Equipped with a high-frequency resonant inverter microprocessor-controlled generator, the SR-130 guarantees consistent performance and efficiency.
- Intuitive User Interface: Designed for ease of use, the intuitive interface allows for carefree technique setting and status indication.
Portability and Flexibility
- Lightweight Design: Weighing just 100 lbs, the SR-130 boasts the best power-to-weight ratio in the market, making it incredibly easy to transport.
- Compact Footprint: Despite its small size, the SR-130 does not compromise on performance, making it ideal for a variety of settings.
Versatile Applications
- Wide Range of Uses: Suitable for hospitals, medical centers, clinics, sports complexes, nursing homes, home health care, correctional facilities, and military applications.
- Film and Digital: Available in both film-based and digital versions, with the film version featuring a built-in cassette storage area accommodating up to seven standard 14″x 17″ radiographic film cassettes.
Specifications
- Generator Type: High-frequency resonant inverter, microprocessor-controlled
- kVp Range: 40 – 100, adjustable in 1kVp steps
- mA Range: 15 & 30, selectable, constant mA independent of kV or time
- mAs Range: 0.125 – 120, providing quality soft tissue and bone resolution
- Exposure Time: 96 steps for accurate technique settings
- X-ray Tube: Stationary anode, 15° target, 1.0 fs 30,000 heat unit storage

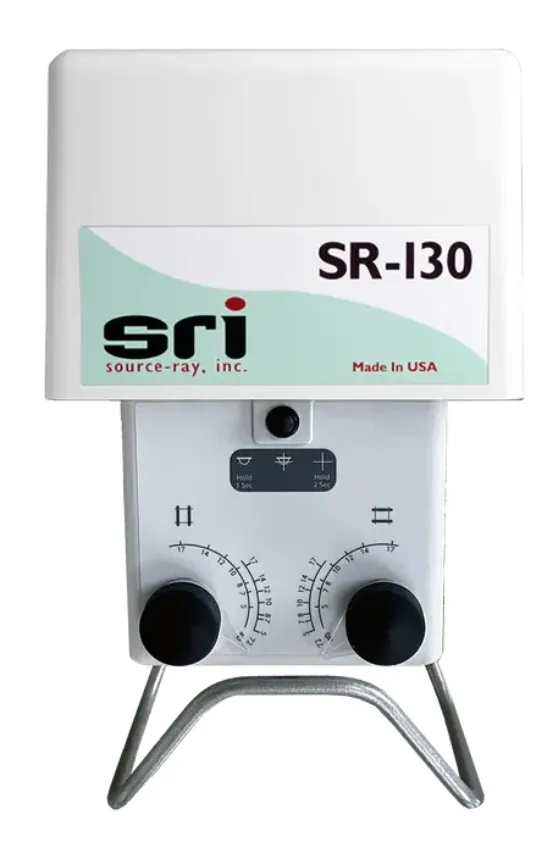

- Collimator: 200° rotation, high output LED lamp, laser indicators
- Exposure Switch: 2-position, prep/x-ray, 15′ cable
Why Choose the SR-130?
Reliability and Low Maintenance
The SR-130 is designed for long-term use with minimal maintenance, ensuring it remains a dependable tool in your diagnostic arsenal.
Unmatched Image Quality
With its small focal spot and high-frequency generator, the SR-130 produces exceptional image quality that meets the highest standards of medical imaging.
Industry Standard Leader
As the industry leader in portable X-ray systems, the SR-130 consistently outperforms its competitors, offering the highest power in the most portable package.
Warranty and Support
- Three-Year Limited Warranty: Assurance of quality and reliability, backed by comprehensive support from Source Ray.
Contact Us
Discover the future of portable medical imaging with the SR-130 Portable X-Ray System.
Experience the perfect blend of performance, efficiency, and portability with the Source Ray SR-130 Portable X-Ray System—because your patients deserve the best.
*Mobile kit not included, but an optional upgrade.
